Description

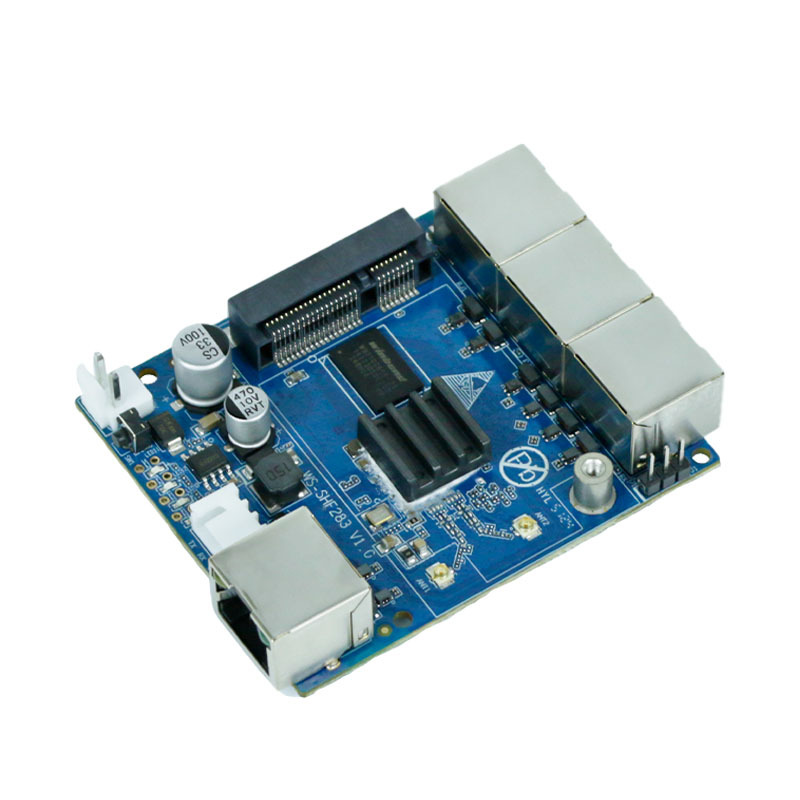

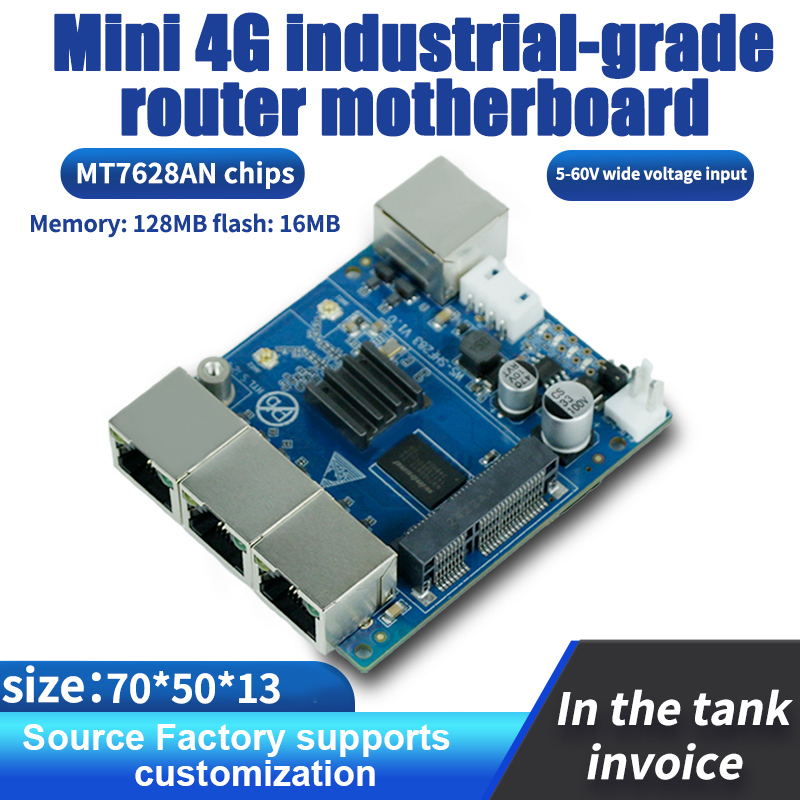

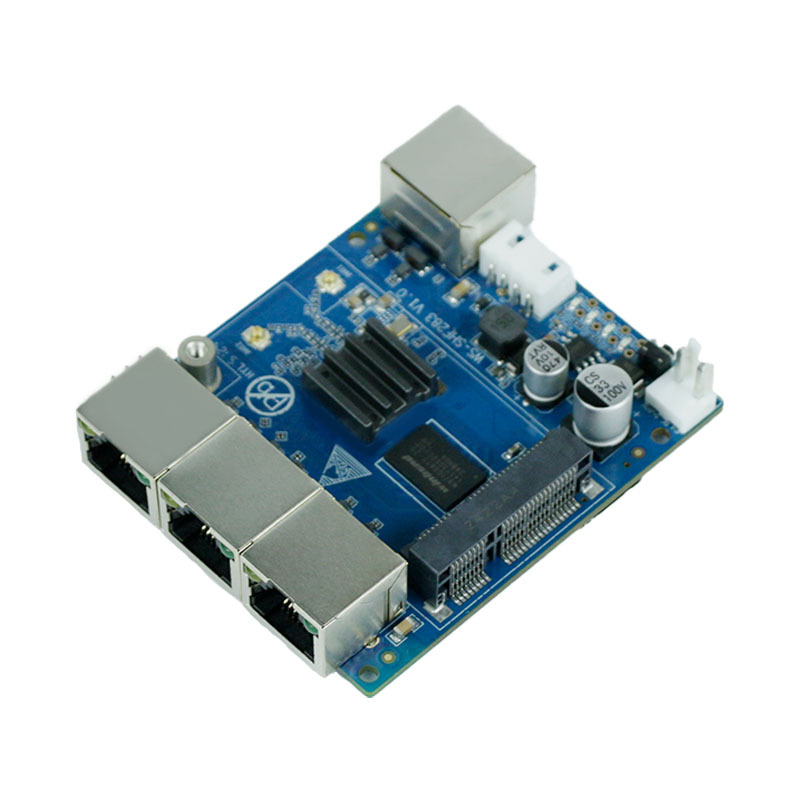

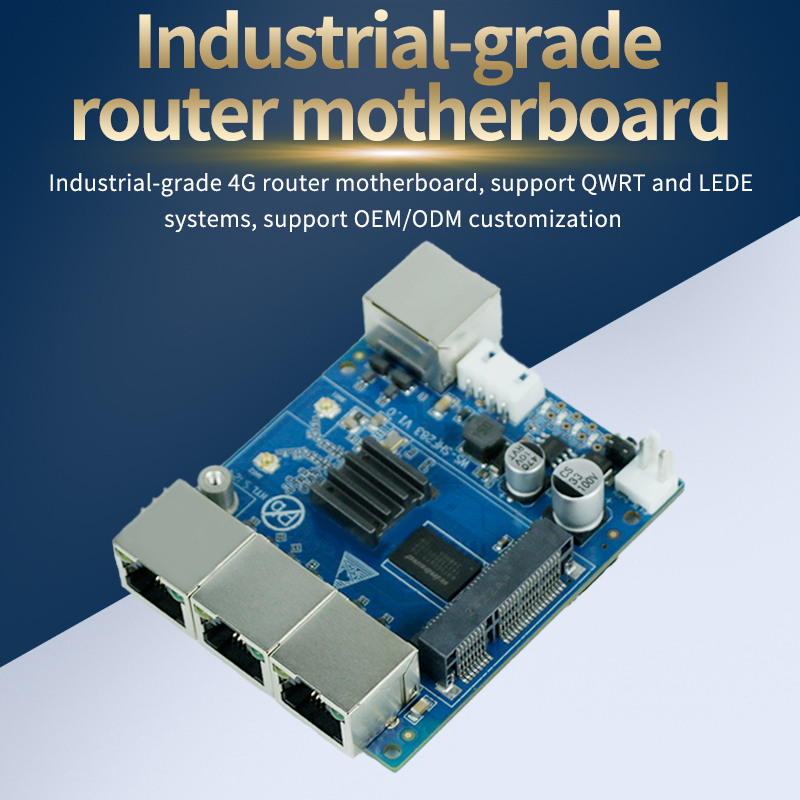

SHF283 is a 4G mini router motherboard. Utilizing the MT7628 mainframe, the SHF283 delivers superior wireless rates and signal strength. This new router provides high data transmission for gateway data, voice and image applications in the smart home, while consuming far less power than other similar products on the market. The portable and compact design also meets the need for travel-optimized networks.
The integrated 2T2R 802.11n Wi-Fi radio and 580MHz MIPS 24KEc CPU consumes 18% less power than other chipsets on the market and delivers outstanding wireless communication performance and throughput, allowing consumers to easily control their home network, online appliances, and cloud services from home or far away. It can be used for message interception, small in-vehicle WIFI, image-video return, courier lockers, charging piles, vending machines, remote control for industrial automation, integration of other Internet-enabled devices, and corporate-grade backup network applications. The main features of this motherboard are: wide power supply range, low power consumption, modular design, and multi-function board. Customers can choose different configurations according to their actual situation, saving their development cost and development cycle. In addition, we also provide secondary development software and hardware technical support, as well as a variety of customization and other full-service, convenient for customers to quickly do the integration, professional application promotion.

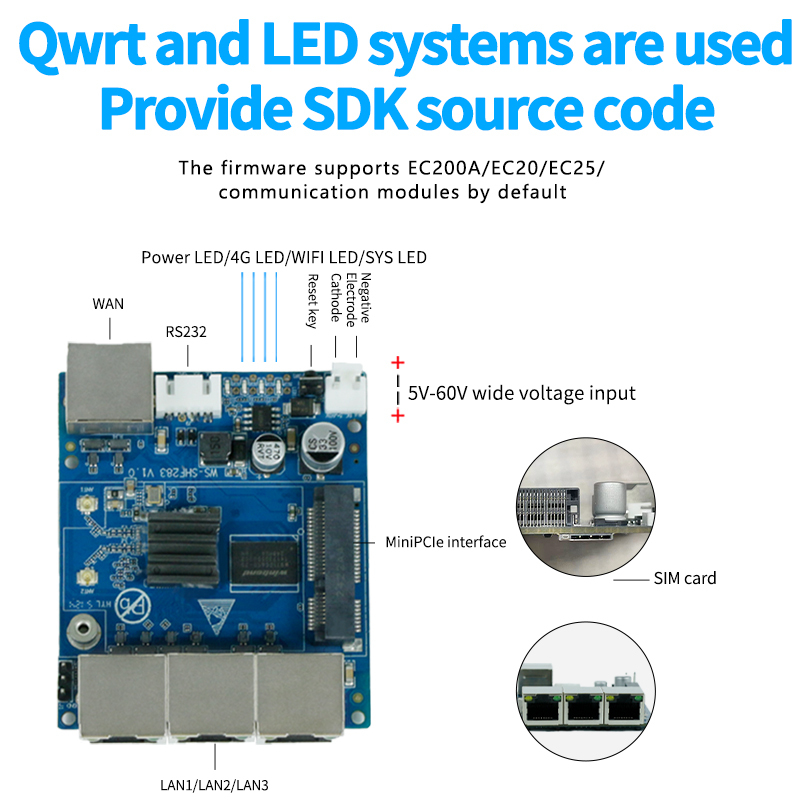

Hardware
- Adopt MT7628 main chip, main frequency up to 580MHz
- Memory DDR2 128M, Flash NOR: 16M
- 1 WAN +3 LAN 10/100Mbps adaptive network port;
- Support “one key flash mode”, long press reset button to enter recovery mode;
- Support wide voltage 5V-60V power supply
- Support RS232 serial port
