Description

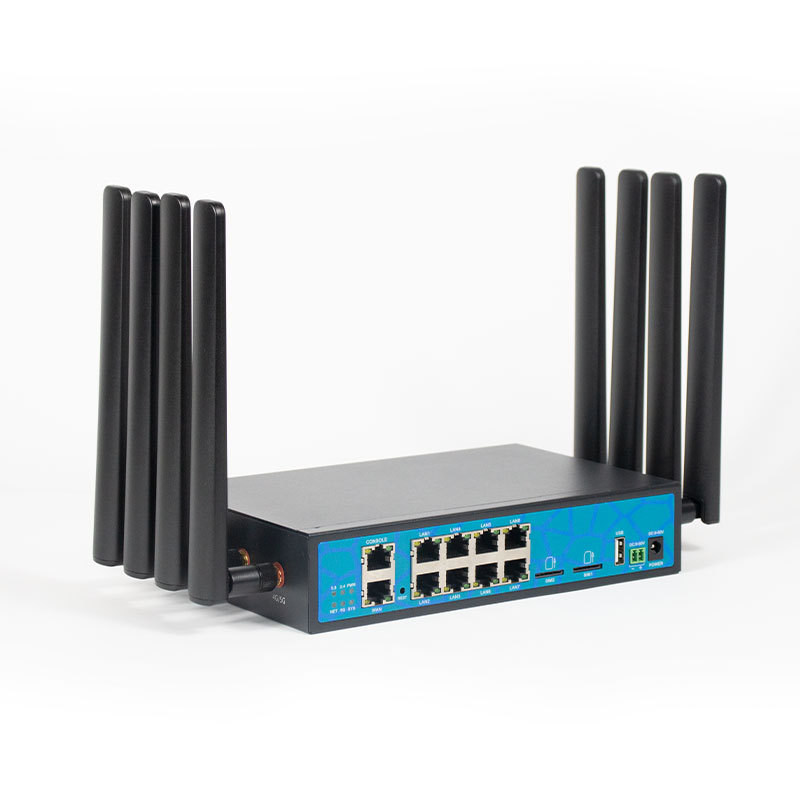

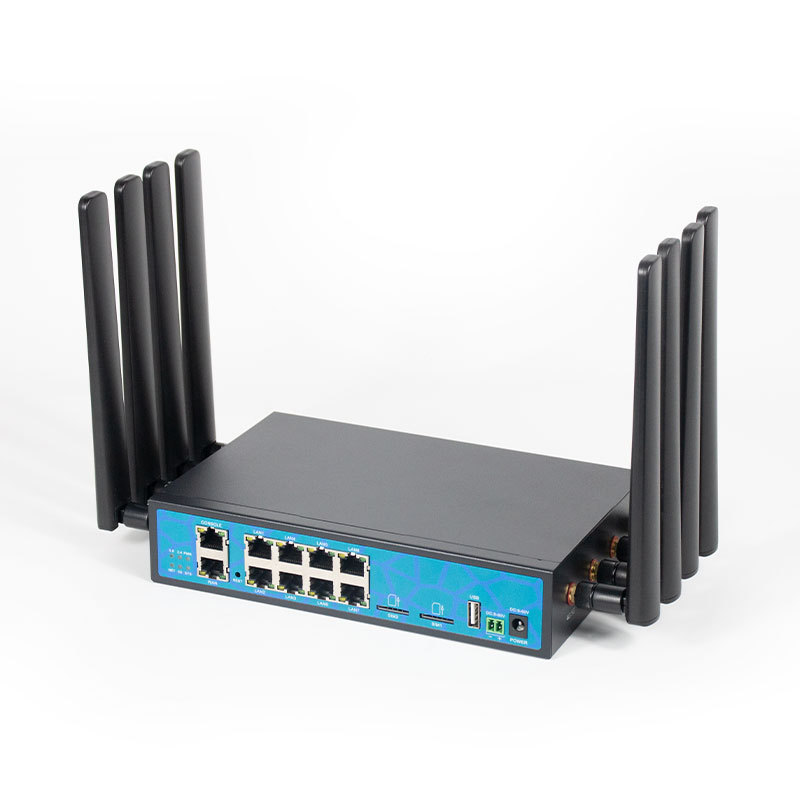

WS3080 is a Industrial 5G/4G+WIFI6 router, which can access the Internet through 5G/4G mobile communication dial-up or 1000Mbps WAN port, and then share the Internet network through wireless WiFi 6 and 1000Mbps wired LAN
Hardware Description
- Using MT7981B solution, ARM Cortex-A53 dual-core CPU, main frequency up to 1.3GHZ;
- Adopt independent WIFI6 chip, MT7976CN, the speed is up to 3000Mbps;
- High-speed 512MB RAM, with 128MB SPI NAND Flash;

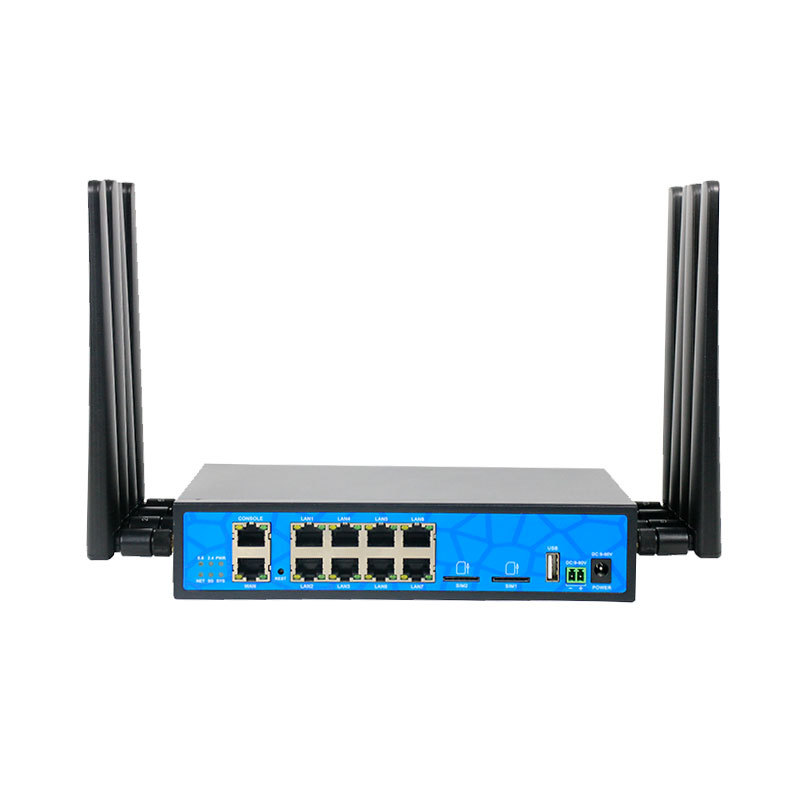

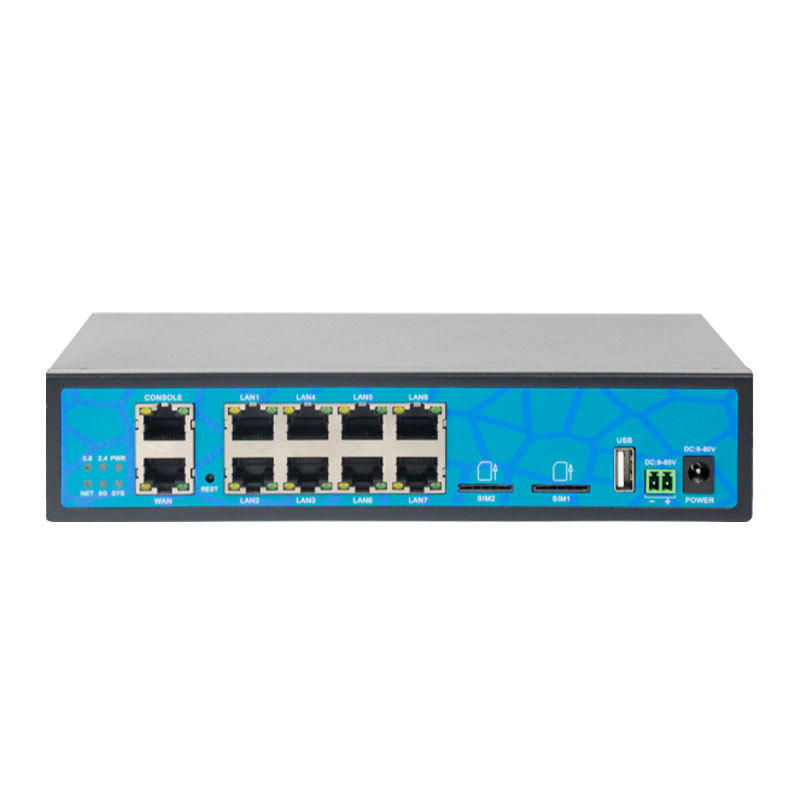

- 1WAN+8LAN 1000M adaptive network port, support automatic flip (Auto MDI/MDIX), 1 console port
- 1 USB 3.0 port
- 1 2pin Terminal port, 1 DC power port, support 9V-60V power
- Support “one-key flashing mode”, long press the reset button to enter the rescue flashing mode;
- Built-in M.2/Mini-PCIE standard interfaces (choose one of the two), which can be used to connect to 5G/4G mobile communication modules;
- External standard SIM card interface, support 2 SIM card load balance
- External high-gain WIFI antenna, 360-degree wireless signal without dead angle

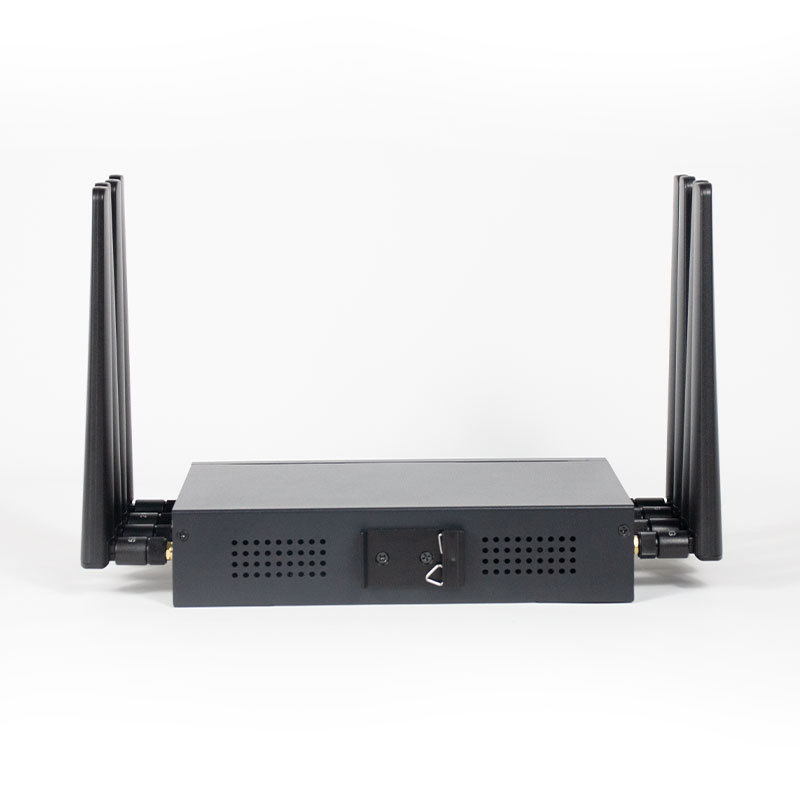

- DIN Rail Clip
- Preload openWRT system, support flash customer’s firmware
Hardware watchdog function introduction
WS3080 is designed with a hardware watchdog function. After the hardware watchdog is powered on, it will automatically start up and detect the heartbeat level output by the routing system that jumps once every second. If the routing system itself fails (such as a crash), it will also Naturally, the heartbeat level can no longer be output. At this time, if the hardware watchdog has not detected the heartbeat level within 120 seconds, it will shut down by itself for 15 seconds and then restart the entire system.
When the routing system is running normally, but the 5G/4G module dialing is abnormal, the routing system will control the power supply of the 5G/4G module through GPIO, so that the module will automatically restart to fix the 5G/4G dialing abnormality.
