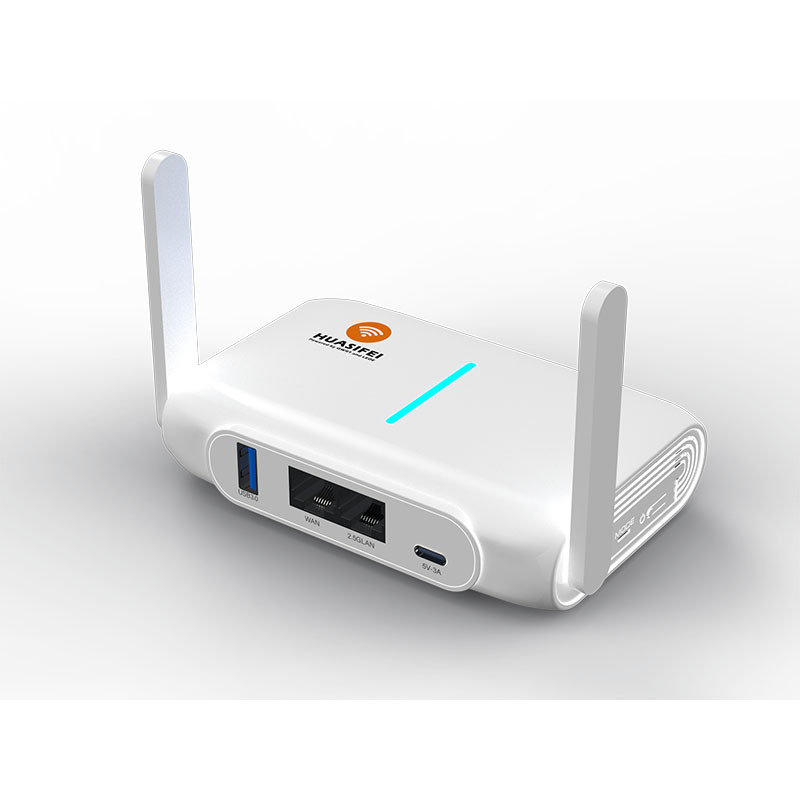

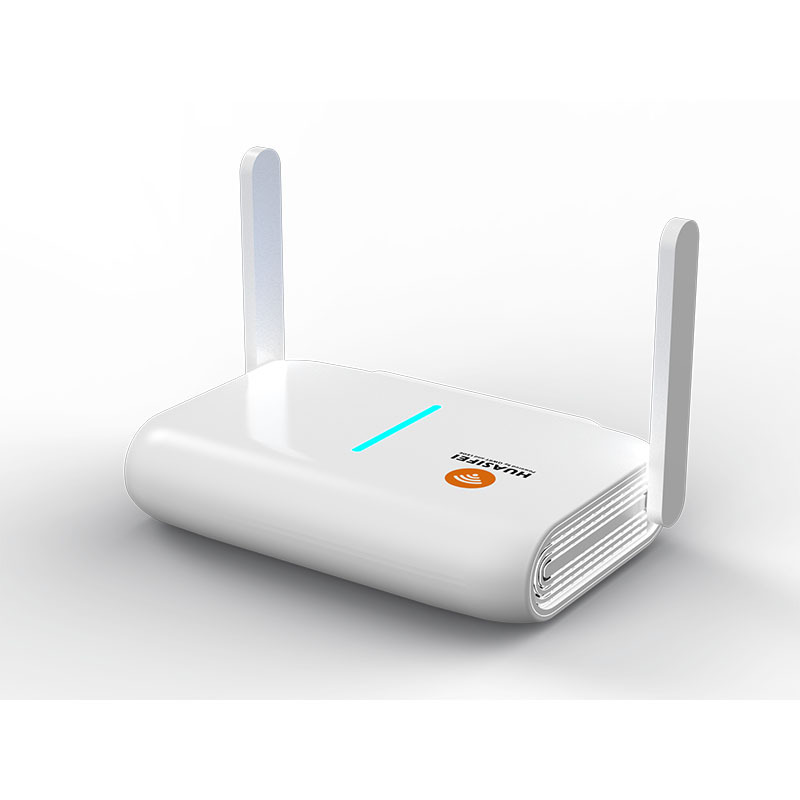

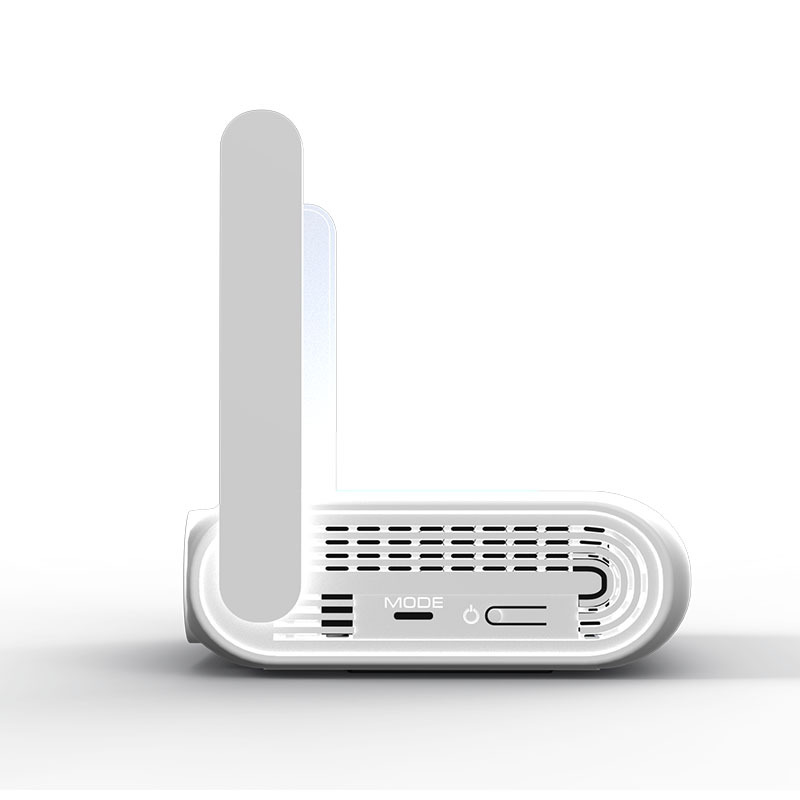

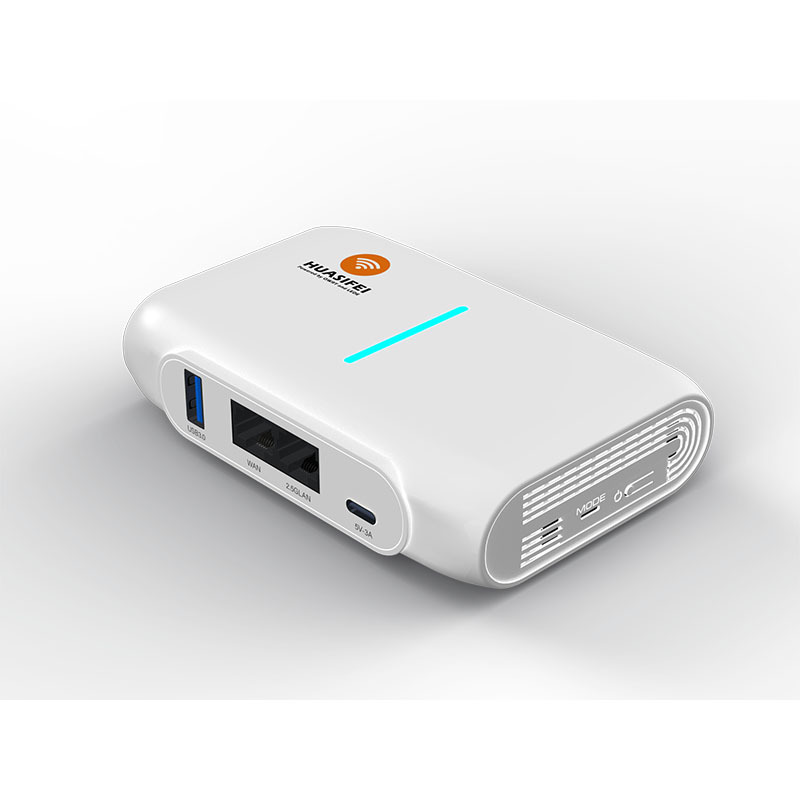

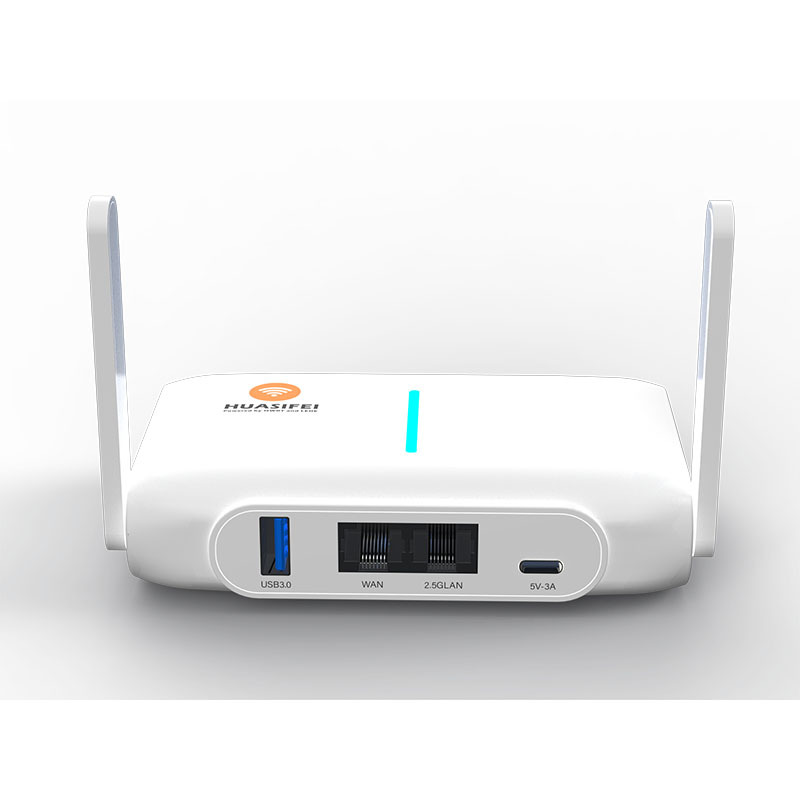

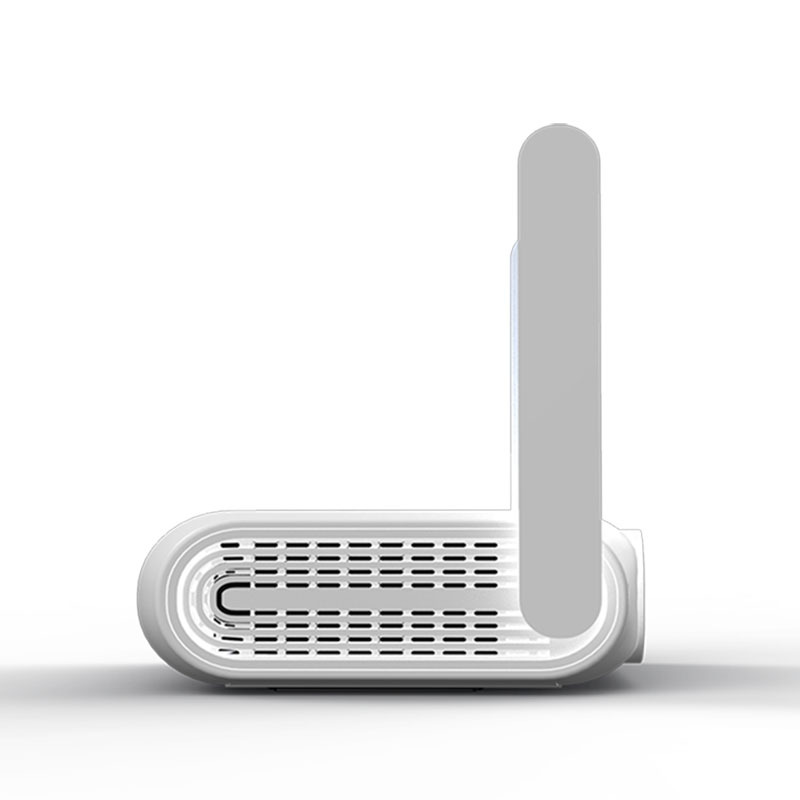

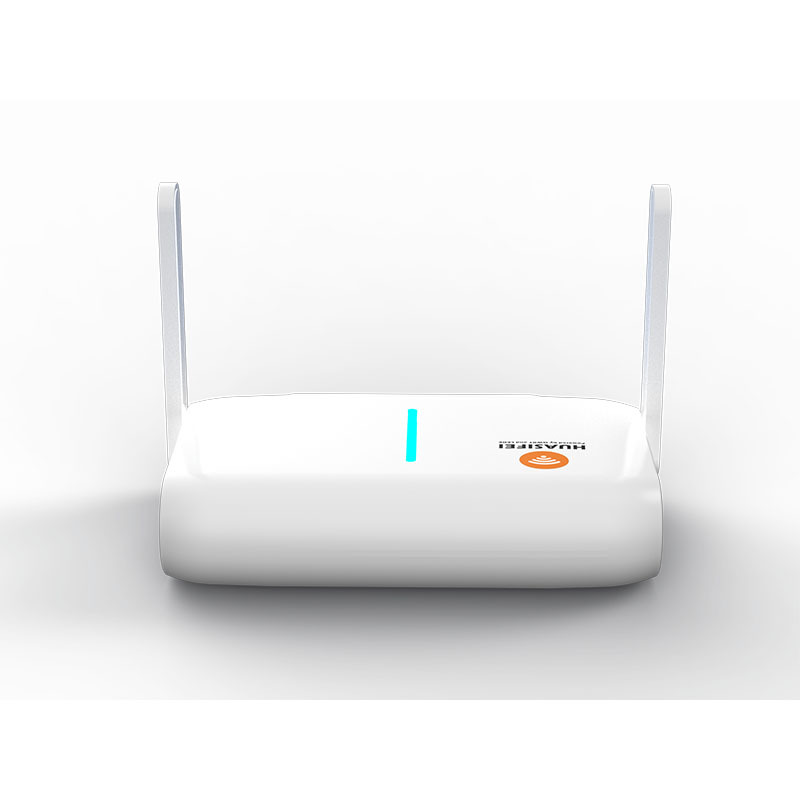

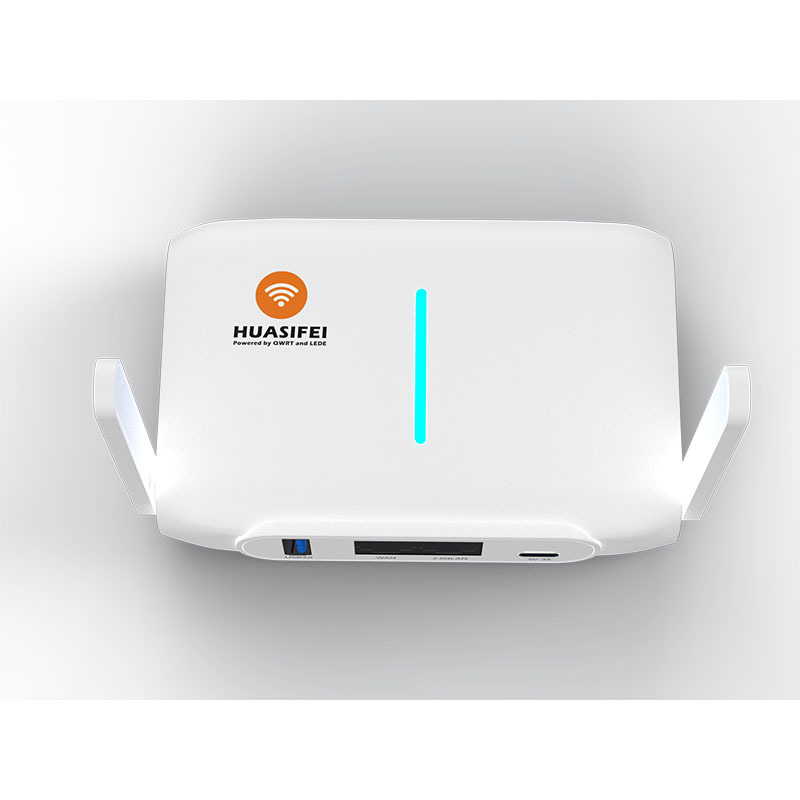

Travel essentials gigabit dual band mini wifi6 5.8g lte router openwrt system AX3000 portable wifi router
Description
Specification

Description

AX3000 is a portable router using Wi-Fi 6 protocol. It is powered by MT7981B 1.3GHz dual-core processor with 160MHz support, which provides excellent improvement in wireless rate and signal strength. It can be used for multi-device connectivity in the home, and the portable and compact design also meets the needs of optimized network for travel.
  Featuring advanced WiFi 6 technology, Beamforming to enhance coverage and BSS Coloring to reduce network congestion, 160MHz doubles the bandwidth channel compared to 80MHz for faster network speeds and a greater number of device connections.
  The AX3000’s Wi-Fi 6 speeds allow families to watch 4K video on multiple devices with ease and without data buffering interruptions.
Hardware Description
  • MT7981B main chip, main frequency up to 1.3GHZ; equipped with independent MT7976CN WIFI6 chip, 2.5G network port RTL8221B chip
  • High-speed 1G DDR4, 8GB EMMC;
  • 1LAN 2500 Mbps+1WAN 1000 Mbps adaptive network port;
  • Support “one key flash mode”, long press reset button to enter recovery mode;
  • Support Type-C power interface
  • Support USB3.0 interface

specification

WH3000 Hardware Specifications

Hardware Specifications MT7981B+MT7976CN+RTL8221B Dual Core 1.3GHZ

DDR4 1GB

8GB EMMC (Optional 128G)

WIFI Chip MT7976CN IEEE 802.11n/g/b/a/ac/ax,Max. 3000Mbps
Protocol Standards IEEE802.11n/g/b/a/ac/ax,IEEE802.3/802.3u
Wireless Rate 574Mbps (2.4GHz)+2402Mbps (5GHz)
Operating Frequency Bands 2.4GHz 5.8GHz
output power 11n:17dBm±1dBm

11g: 17dBm±1dBm

11b: 19dBm±1dBm

11a: 19dBm±1dBm

11ac: 18dBm±1dBm

11AX: 19dBm±1dBm

receiver sensitivity 11N HT20 MCS7: -72dBm

11N HT40 MCS7: -69dBm

11G 54Mbps: -74dBm

11B 11Mbps: -86dBm

11A 54Mbps: -73dBm

11AC VHT20 MCS8: -66dBm

11AX VHT20 MCS8: -66dBm

antennae 2* Built-in Wi-Fi antenna
interface 1*10/100/1000/2500Mbps LAN Port, Auto MDI/MDIX.

1*10/100/1000Mbps WAN Port, Auto MDI/MDIX.

1*USB 3.0 Interface

1*Type-C power connector

1*Reset button

1*VPN  button

LED Lights WIFI
Pushbuttons 1* Reset button
Power Adapter Type-C, 5V/3A
Maximum Power Consumption < 8W
